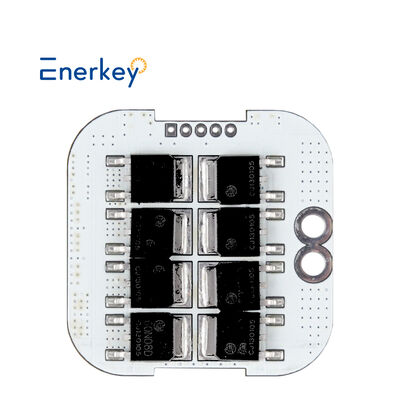

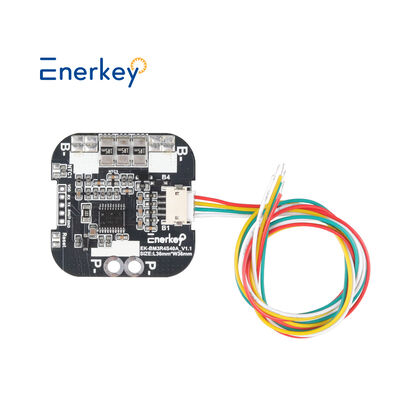

Enerkey 4S 15.6V 40A PCB BMS Protection Board for 18650 Li-ion/Lifepo4/Lto/SIB Lithium Battery Cell Module

Marchio:	Enerkey
Numero di modello:	EK-BM3R4S40A
MOQ:	10 pezzi
prezzo:	$4.5-$5
Dettagli dell' imballaggio:	Strong Paper Box +Eva schiuma
Condizioni di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Informazioni dettagliate

Descrizione di prodotto

Informazioni dettagliate

Luogo di origine:

Shenzhen, Cina

Certificazione:

ISO9001/CE/ROHS

Nome del prodotto:

Batteria al litio 4S 40A BMS

Spessore del rame:

Applicazione:

immagazzinamento di energia domestica

Spessore della scheda:

1,6 mm

Tipo di batteria:

Li-ion/Lifepo4/Lto/SIB

Gamma di tensione operativa consentita:

0-30V

Corrente di scarica nominale:

Corrente di partenza di picco:

Usato per:

Pannello di protezione delle batterie al litio

Parole chiave:

bms 4s

Materiale di base:

Finitura superficiale:

Stagno a spruzzo senza piombo

Dimensioni del prodotto:

L36xL36xP5mm

Peso con pacchetto:

0,08 kg

Capacità di alimentazione:

1000000pcs al giorno

Descrizione di prodotto

Enerkey 4S 15.6V 40A PCB BMS Protection Board for 18650 Li-ion/Lifepo4/Lto/SIB Lithium Battery Cell Module

Product Description

Application Scenarios
Power Tools: Provides stable power support for appliances such as drills and angle grinders.
Energy Storage Systems: Used for home or industrial energy storage to ensure battery pack safety.
Electric Bicycles: Facilitates efficient vehicle operation and extends range.
Other Scenarios: Suitable for portable devices or customized projects requiring high current output.

Instructions for Use
Installation Guide:
Connect the protection board to the positive and negative terminals of the battery pack correctly, ensuring correct polarity.
Use insulating tape to secure the wiring and prevent short circuits.
Install heat sinks to enhance heat dissipation.

Maintenance Recommendations:
Regularly check the protection board connection points to prevent loosening.
Avoid prolonged use in high-temperature or humid environments.

Precautions:
Do not connect the battery in reverse, as this may damage the protection board.
If abnormal heating or frequent protection triggering occurs, stop use immediately and check.

Frequently Asked Questions
Q: Does the protection board support fast charging?
A: This product supports standard charging protocols. For fast charging functionality, please confirm charger compatibility.

Q: How do I determine if the protection board is working properly?
A: Use a multimeter to monitor the battery voltage. If the protection board does not trigger and the voltage is stable, then it is working normally.

Product Advantages:
Safe and Reliable: Multiple protection mechanisms reduce the risk of battery failure.
Highly Compatible: Suitable for various 3S/4S lithium battery packs, flexibly adaptable to different devices. (AI generated)

Enerkey 4S 15.6V 40A PCB BMS Protection Board for 18650 Li-ion/Lifepo4/Lto/SIB Lithium Battery Cell Module 0

Technical Parameters

	Item type		Parameters
1	Parameter Overview	Product Model	EK-BM3R4S40A
		Product Size(mm)	L36W36T5
		Product Weight(kg)	0.08
		Product Material	FR-4 / Lead-free spray tin
		Applicable battery type	Lifepo4		Li-ion		Lto		SIB
		Applicable battery string	3S / 4S		3S / 4S		3S / 4S		3S / 4S
		Rated discharge current	40A		40A		40A		40A
		Peak starting current	85A		85A		85A		85A
	Item type		Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)
2	Charging protection	Overvoltage protection voltage value	3.65V/1S	3.50V/1S	4.25V/1S	4.05V/1S	2.85V/1S	2.75V/1S	3.95V/1S	3.80V/1S
		Overcurrent value	40A/2S, disconnect charger to recover
		Low temperature value	Charge over-temperature protection 60℃/2S / Release 55℃/2S
		Overtemperature value	Charging low temperature protection -5℃/2S / Release 0℃/2S
3	Discharge protection	Undervoltage protection voltage value	2.30V/1S	2.70V/1S	2.75V/1S	3.0V/1S	1.70V/1S	1.80V/1S	1.50V/1S	2.00V/1S
		①Overcurrent protection value	45A/2S, disconnect load or activate charging
		②Overcurrent protection value	85A/0.5S, disconnect load or activate charging
		Short circuit protection value	150A/64uS, disconnect load or charge activated
		Low temperature value	Discharge over-temperature protection 65℃/2S, release 60℃/2S
		Overtemperature value	Discharge low temperature protection -20℃/2S, release -10℃/2S
4	Others	Standby current consumption	25uA
		Motherboard lock voltage	/

Size $ Packing List

Package included:

1 * BMS

1 * NTC Terminal Cable(Please tell us if you need it with NTC)

1 * Terminal Cable

Enerkey 4S 15.6V 40A PCB BMS Protection Board for 18650 Li-ion/Lifepo4/Lto/SIB Lithium Battery Cell Module 3

Wire Diagram

Enerkey 4S 15.6V 40A PCB BMS Protection Board for 18650 Li-ion/Lifepo4/Lto/SIB Lithium Battery Cell Module 4

Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.

4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
