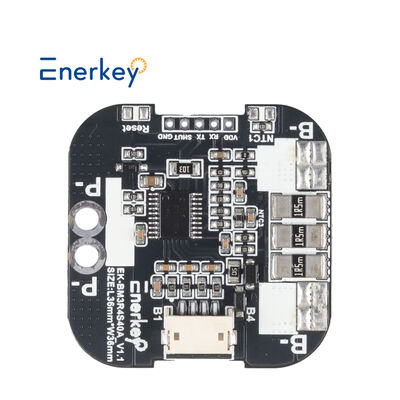

Enerkey 12V 3S 4S 40A BMS Li-ion/Lifepo4/Lto/SIB Lithium Battery Charger Protection Board 18650 BMS for Scooter and E-bike

Marchio:	Enerkey
Numero di modello:	EK-BM3R4S40A
MOQ:	10 pezzi
prezzo:	$4.5-$5
Dettagli dell' imballaggio:	Strong Paper Box +Eva schiuma
Condizioni di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Informazioni dettagliate

Descrizione di prodotto

Informazioni dettagliate

Luogo di origine:

Shenzhen, Cina

Certificazione:

ISO9001/CE/ROHS

Nome del prodotto:

Batteria al litio 3S 4S 40A BMS

Spessore del rame:

Applicazione:

Home energy storage, scooter elettrico

Spessore della scheda:

1,6 mm

Tipo di batteria:

Li-ion/Lifepo4/Lto/SIB

Gamma di tensione operativa consentita:

0-30V

Corrente di scarica nominale:

Corrente di partenza di picco:

Usato per:

Pannello di protezione delle batterie al litio

Parole chiave:

3S 4S BMS

Materiale di base:

Finitura superficiale:

Stagno a spruzzo senza piombo

Dimensioni del prodotto:

L36xL36xP5mm

Peso con pacchetto:

0,08 kg

Capacità di alimentazione:

1000000pcs al giorno

Descrizione di prodotto

Enerkey 12V 3S 4S 40A BMS Li-ion/Lifepo4/Lto/SIB Lithium Battery Charger Protection Board 18650 BMS for Scooter and E-bike

Product Description

Enerkey BMS 3S-4S 40A 6V-30V Lifepo4 li-ion LTO SIB Battery Protection Board.

Continuous Current 40A,Maximum Discharge Current 85A (max 10s). L 36mm x W 36mm x H 5mm

Enerkey BMS Hardware BMS

● Number of Battery Strings: 3S to 4S.

● Power supply mode: The battery pack is self-powered and 60-30V DC input.

●Single cell voltage detection range:0-5V,error<20mV over full operating range, Typical error value<10mV.

● Support single cell voltage dropout detection.

● Wiring method: same port.

● Short Circuit Protection: Support.

● Temperature detection:-40～125℃.

● Total voltage detection Detection range:0-30V,<0.5%FSR(FSR=full scale).

● Current Sense Shunt:10A~80A,Error<0.5%FSR.

● Battery remaining capacity: error range is less than 8%

● Total Cycle AH Cumulative value is half of the charge/discharge value.

● Operating power consumption:<5mA(without communication)

● Standby power consumption:<2mA.

● Operating Temperature:-40~85°C.

● Storing Temperature:-40～95℃.

Enerkey 12V 3S 4S 40A BMS Li-ion/Lifepo4/Lto/SIB Lithium Battery Charger Protection Board 18650 BMS for Scooter and E-bike 0

Technical Parameters

	Item type		Parameters
1	Parameter Overview	Product Model	EK-BM3R4S40A
		Product Size(mm)	L36W36T5
		Product Weight(kg)	0.08
		Product Material	FR-4 / Lead-free spray tin
		Applicable battery type	Lifepo4		Li-ion		Lto		SIB
		Applicable battery string	3S / 4S		3S / 4S		3S / 4S		3S / 4S
		Rated discharge current	40A		40A		40A		40A
		Peak starting current	85A		85A		85A		85A
	Item type		Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)	Trigger (time)
2	Charging protection	Overvoltage protection voltage value	3.65V/1S	3.50V/1S	4.25V/1S	4.05V/1S	2.85V/1S	2.75V/1S	3.95V/1S	3.80V/1S
		Overcurrent value	40A/2S, disconnect charger to recover
		Low temperature value	Charge over-temperature protection 60℃/2S / Release 55℃/2S
		Overtemperature value	Charging low temperature protection -5℃/2S / Release 0℃/2S
3	Discharge protection	Undervoltage protection voltage value	2.30V/1S	2.70V/1S	2.75V/1S	3.0V/1S	1.70V/1S	1.80V/1S	1.50V/1S	2.00V/1S
		①Overcurrent protection value	45A/2S, disconnect load or activate charging
		②Overcurrent protection value	85A/0.5S, disconnect load or activate charging
		Short circuit protection value	150A/64uS, disconnect load or charge activated
		Low temperature value	Discharge over-temperature protection 65℃/2S, release 60℃/2S
		Overtemperature value	Discharge low temperature protection -20℃/2S, release -10℃/2S
4	Others	Standby current consumption	25uA
		Motherboard lock voltage	/

Size $ Packing List

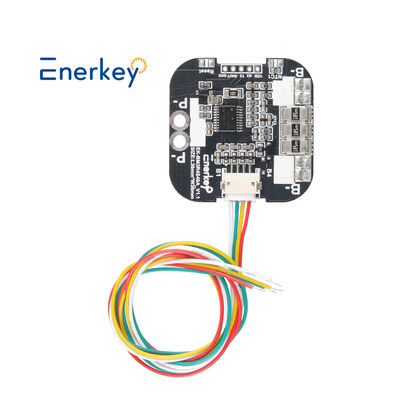

Package included:

1 * BMS

1 * NTC Terminal Cable(Please tell us if you need it with NTC)

1 * Terminal Cable

Enerkey 12V 3S 4S 40A BMS Li-ion/Lifepo4/Lto/SIB Lithium Battery Charger Protection Board 18650 BMS for Scooter and E-bike 3

Wire Diagram

Enerkey 12V 3S 4S 40A BMS Li-ion/Lifepo4/Lto/SIB Lithium Battery Charger Protection Board 18650 BMS for Scooter and E-bike 4

Wiring precautions:
1. Installing the protective board requires a certain amount of technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad position to the total negative terminal of the battery (the B- wire should be soldered to a short and thick wire) and solder the wired terminal to the battery pack first, and then insert the protective plate.
3. The connection between the battery terminal B- and the protection board terminal B- should be short and thick, otherwise it will cause the protection board to charge and discharge in advance and malfunction.

4. You need to use thick wires when wiring P+/P-. Wires that are too thin and too long will burn the board!

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

*We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

*Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

*Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

*If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

*Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

*We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

*Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

*We have 7x24 hours online service, Please leave us a message online.

*You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
