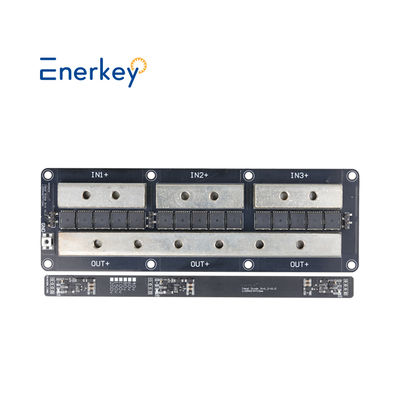

Enerkey Ideal Diode Current sharing in parallel diodes 200V 150A 1in3 3in1 for Photovoltaic Solar Base Station

Marchio:	Enerkey
Numero di modello:	EK-ID200V150A 1IN3 3IN1
MOQ:	10 pezzi
prezzo:	$108.8-$120.8
Dettagli dell' imballaggio:	Strong Paper Box +Eva schiuma
Condizioni di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Informazioni dettagliate

Descrizione di prodotto

Informazioni dettagliate

Luogo di origine:

Shenzhen, Cina

Certificazione:

ISO9001/CE/ROHS

Nome prodotto:

200v 150a 1in3 3in1 diodo ideale

Spessore del rame:

Applicazione 1:

Caricabatterie anti-riempimento

Spessore della scheda:

3,0 mm

Applicazione 2:

Alimentazione elettrica all'aperto

Gamma di tensione operativa consentita:

9-200V

Corrente quiescente:

0,6-1,5 mA

Corrente continua ammissibile:

0-450a

Materiale di base:

Substrato di alluminio

Finitura superficiale:

HASL senza piombo

Dimensione del prodotto:

L195XW67XT25mm

Peso con pacchetto:

0.96kg

Capacità di alimentazione:

10000 pezzi al giorno

Descrizione di prodotto

Enerkey Ideal Diode Current sharing in parallel diodes 200V 150A 1in3 3in1 for Photovoltaic Solar Base Station

Product Description

Module Design Features:

Packaging:

Flat-Pack or Press-Pack module construction for ease of mounting and high current handling.

High-conductivity copper or aluminum heat sinks may be integrated for better heat dissipation.

High Thermal Efficiency:

The module should be designed to efficiently transfer heat to prevent overheating during heavy operation.

Electrical Isolation:

Often, these modules include electrical isolation between the diode and the module housing to prevent short-circuits and allow for safe operation.

Low Inductance:

The design should minimize parasitic inductance to ensure high-speed operation, especially during switching.

Short-Circuit Protection:

Integrated protection mechanisms may help avoid damage to the diode during faults or extreme overloads.

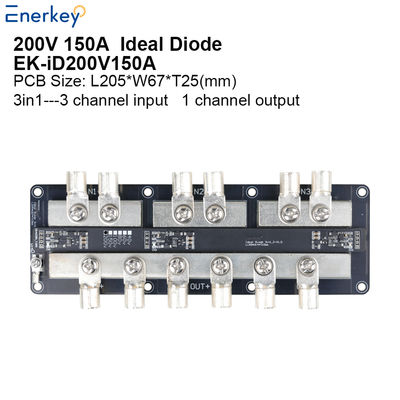

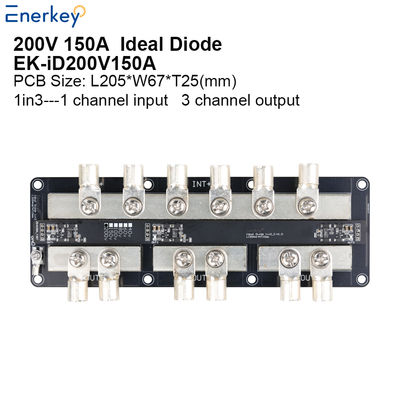

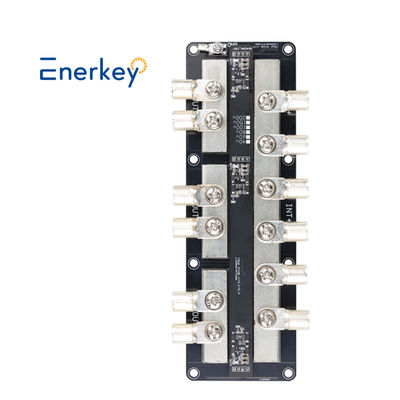

Enerkey Ideal Diode Current sharing in parallel diodes 200V 150A 1in3 3in1 for Photovoltaic Solar Base Station 0

Enerkey Ideal Diode Current sharing in parallel diodes 200V 150A 1in3 3in1 for Photovoltaic Solar Base Station 1

Enerkey Ideal Diode Current sharing in parallel diodes 200V 150A 1in3 3in1 for Photovoltaic Solar Base Station 2

Enerkey Ideal Diode Current sharing in parallel diodes 200V 150A 1in3 3in1 for Photovoltaic Solar Base Station 3

Enerkey Ideal Diode Current sharing in parallel diodes 200V 150A 1in3 3in1 for Photovoltaic Solar Base Station 4

Technical Parameters

Enerkey Ideal Diode Module 40V 60V 80V 100V 150V 200V 150A 1in3 3in1 Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
Product model	EK-iD100V150A	EK-iD150V150A	EK-iD200V150A
Working voltage range	9-100V	9-150V	9-200V
Product Size(mm)	L195W67T25	L195W67T25	L195W67T25
Weight with box	0.93kg	0.94kg	0.95kg
Battery Type	NCM/LFP/LTO	NCM/LFP/LTO	NCM/LFP/LTO
Continuous current	450A
Peak starting current	450A
Quiescent operating current	0.6-1.5mA
Copper foil thickness	3.0 oz
PCB material	Aluminum plate
On-going internal resistance	NA
Working principle	The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast.
Application	1. Solar panels prevent backflow (anti-backflow); 2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required
Accessories	Terminal lug13; IN+/OUT+ terminal lug : OTZ25-6, screw M6 12 GND terminal lug : OTZ2.5-3, screw M3 *1
Operating Temperature	-40℃ ~ +60℃

Size & Packing List & Wire Diagram

Enerkey Ideal Diode Current sharing in parallel diodes 200V 150A 1in3 3in1 for Photovoltaic Solar Base Station 5

Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;

2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems.

The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.

4. This ideal diode module cannot be used in rectifier circuits!

Enerkey Ideal Diode Current sharing in parallel diodes 200V 150A 1in3 3in1 for Photovoltaic Solar Base Station 6
