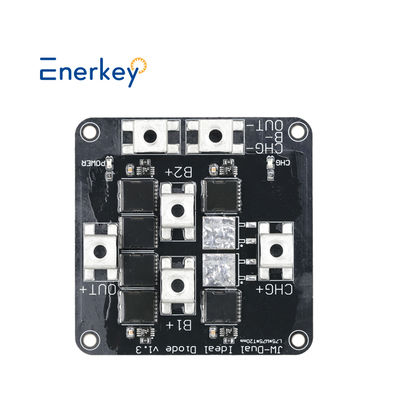

Enerkey 75V 100A Ideal Diode Module Smart Switch Current Protective For Electric Vehicle Accessories Solar Battery Charging

Tutte le categorie

Balanciatore attivo intelligente

Macchina per la riparazione delle batterie

Immagazzinamento dell'energia BMS

BMS di accumulo di energia per veicoli a motore

BMS per il deposito a domicilio

BMS per carrelli elevatori elettrici

BMS della stazione di ricarica

BMS di bilanciatore attivo intelligente per veicoli pesanti

Contattici

Mrs. Kiwi Xiao

kiwi@enerkey.cn

+8615387469240

Enerkey-Tech

Contatto ora

Enerkey 75V 100A Ideal Diode Module Smart Switch Current Protective For Electric Vehicle Accessories Solar Battery Charging

Marchio:	Enerkey
Numero di modello:	EK-ID75V100A
MOQ:	50pici
prezzo:	$28.5-$32.2
Dettagli dell' imballaggio:	Strong Paper Box +Eva schiuma
Condizioni di pagamento:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Informazioni dettagliate

Descrizione di prodotto

Informazioni dettagliate

Luogo di origine:

Shenzhen, Cina

Certificazione:

ISO9001/CE/ROHS

Nome prodotto:

75V 100A Ideale diodo ideale

Spessore del rame:

Applicazione 1:

Caricabatterie anti-riempimento

Spessore della scheda:

2,0 mm

Gamma di tensione operativa consentita:

9-75v

Corrente di lavoro statica:

0,6-1,5 mA

Corrente continua ammissibile:

0-100a

Materiale di base:

Substrato di alluminio

Corrente di partenza di picco:

Dimensione del prodotto:

L75XW75XT16.5mm

Peso con pacchetto:

0,4 kg

Capacità di alimentazione:

10000 pezzi al giorno

Descrizione di prodotto

Enerkey 75V 100A Ideal Diode Module Smart Switch Current Protective For Electric Vehicle Accessories Solar Battery Charging

Product Description

Features:
1. The product only needs to be connected in series with the positive pole of the circuit, without connecting the negative pole
2. No input voltage limit (guaranteed reverse voltage below 75V)
3. Continuous overcurrent is 100A
4. Fast response to reverse polarity, input and output are equivalent to diodes.
5. Detect the output voltage is greater than the input immediately shut down the output, the detection value for the millivolt level, the response speed is very fast!

Product Description:
This module uses imported MOS management chip, on board 4 0.9mΩ, 320A high power MOS tube, over high current temperature rise is very low. This product is not grounded, according to the official technical information documents, after testing through the ideal diode voltage will be 0.03 ~ 0.2V or so fluctuations (current fluctuations in different voltages, all the ideal diode on the market without grounding are the same there is this problem) 98% of the time when the fluctuation of the voltage on the lowest point of heat is also the lowest, 2% of the time through the body of the diode to the chip power supply, this time the fluctuation of the voltage, the voltage of the power supply to the chip, this time the fluctuation of the voltage, the power supply to the chip. Chip power supply, this time the fluctuation of the voltage is the largest, the heat is also the largest. Suitable for replacing ordinary high-current diodes, batteries, solar panels, anti-backflooding anti-backflow. Series connection on the input side of the power supply is ideal for anti-reverse connection.

Enerkey 75V 100A Ideal Diode Module Smart Switch Current Protective For Electric Vehicle Accessories Solar Battery Charging 0

Enerkey 75V 100A Ideal Diode Module Smart Switch Current Protective For Electric Vehicle Accessories Solar Battery Charging 1

Enerkey 75V 100A Ideal Diode Module Smart Switch Current Protective For Electric Vehicle Accessories Solar Battery Charging 2

Technical Parameters

Enerkey Ideal Diode Module 75V 100A Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
Product model	EK-iD75V100A
Working voltage range	9-75V
Product Size(mm)	L75xW75xT16.5
Weight with box	0.45kg
MOS quantity	4
Battery Type	NCM/LFP/LTO
Continuous current	100A
Peak starting current	100A
Quiescent operating current	0.6-1.5mA
Copper foil thickness	2.0 oz
PCB material	Aluminum plate
Working principle	The input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast.
Application	1. Solar panels prevent backflow (anti-backflow); 2. Battery charging prevents backflow (anti-backflow) (anti-backflow); 3. DC-DC constant voltage and constant current module output prevents backflow 4. Other occasions where backflow prevention (anti-backflow) is required

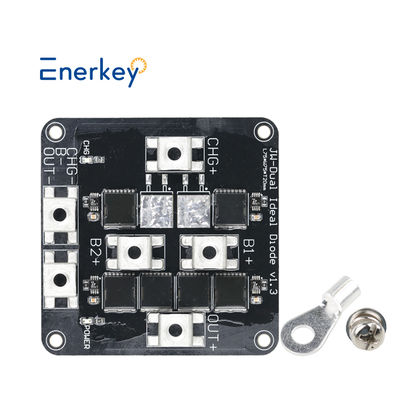

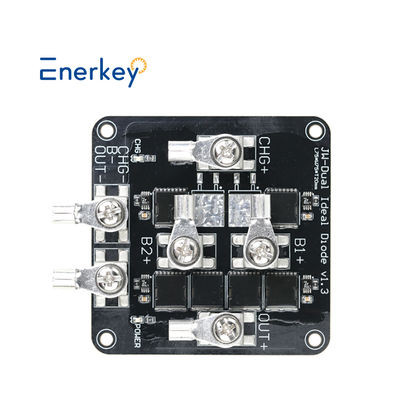

Accessories	Terminal lug*5; IN+/OUT+ terminal lug : OTZ6-5, screw M5 GND terminal lug : OTZ2.5-3, screw M3
Operating Temperature	-40℃ ~ +60℃

Size & Packing List & Wire Diagram

Enerkey 75V 100A Ideal Diode Module Smart Switch Current Protective For Electric Vehicle Accessories Solar Battery Charging 3

Special Note:
1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;

2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems. The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.
4. This ideal diode module cannot be used in rectifier circuits!
5. The waterproof potting module has a thickened radiator, which has higher heat dissipation efficiency and lower continuous current heating. It is suitable for modification enthusiasts!

Enerkey 75V 100A Ideal Diode Module Smart Switch Current Protective For Electric Vehicle Accessories Solar Battery Charging 4

FAQ

Q1. Why did we choose you?

* We can provide you with efficient after-sales service, with more than 10 years of strong technical support.

* Products have passed FCC, CE, ROHS and other international standards certification.

* We can provide you with factory price, Welcome you to visit our factory and production process.

Q2. What is your product range (type)?

* We mainly do battery management systems in the fields of power batteries, energy storage batteries and consumer batteries.

* Mainly used for LFP, Li-ino and LTO batteries.

Q3: How do I know which kind of material & type my battery is ?

* Please look the battery body, If the normal voltage of your battery shows 3.2V, The battery is LiFePo4.

* If the normal voltage of your battery shows 3.6V or 3.7V, the battery is Li-ion or Lto battery.

Q4. Do you have minimum order requirements?

Can it be customized? What is the lead time for samples and batches?

*Our minimum order quantity is 1 piece, ODM customization is available.

* 1~3 days delivery of existing samples, 3~10 days delivery of customized samples.

Q5: What if i can't use it?

* Regular products have instructional videos, We can also support online video call guidance from engineers.

Q6. What are your terms of payment?

* We accept wire transfer and cash payment, all negotiable. Payment method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY, GC_REAL_TIME_BANK_TRANSFER, RMB

Q7. How do you guarantee the quality?

* All our products are subjected to professional laboratory 100% testing, as well as repeated aging tests.

* Obtained FCC, CE, ROHS and other international standard certification.

* Provide 3 years after-sales warranty service. Free spare units for replace in 3 years.

Q8. How to choose a BMS suitable for our battery?

* Depending on the voltage and current that matches your battery, you can consult our customer service and we will provide it for you equipped with the most suitable battery management system.

Q9. How can i contact you?

* We have 7x24 hours online service, Please leave us a message online.

* You can also contact us by Email, WhatsApp, WeChat, etc(see below). We are so glad to work with you.

Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .

We can provide you competitive price in the market if you have bulk order, Please don't hesitate to contact us.

Mobile & WhatsApp & Wechat: +86 15387469240; Email: kiwi@enerkey.cn
